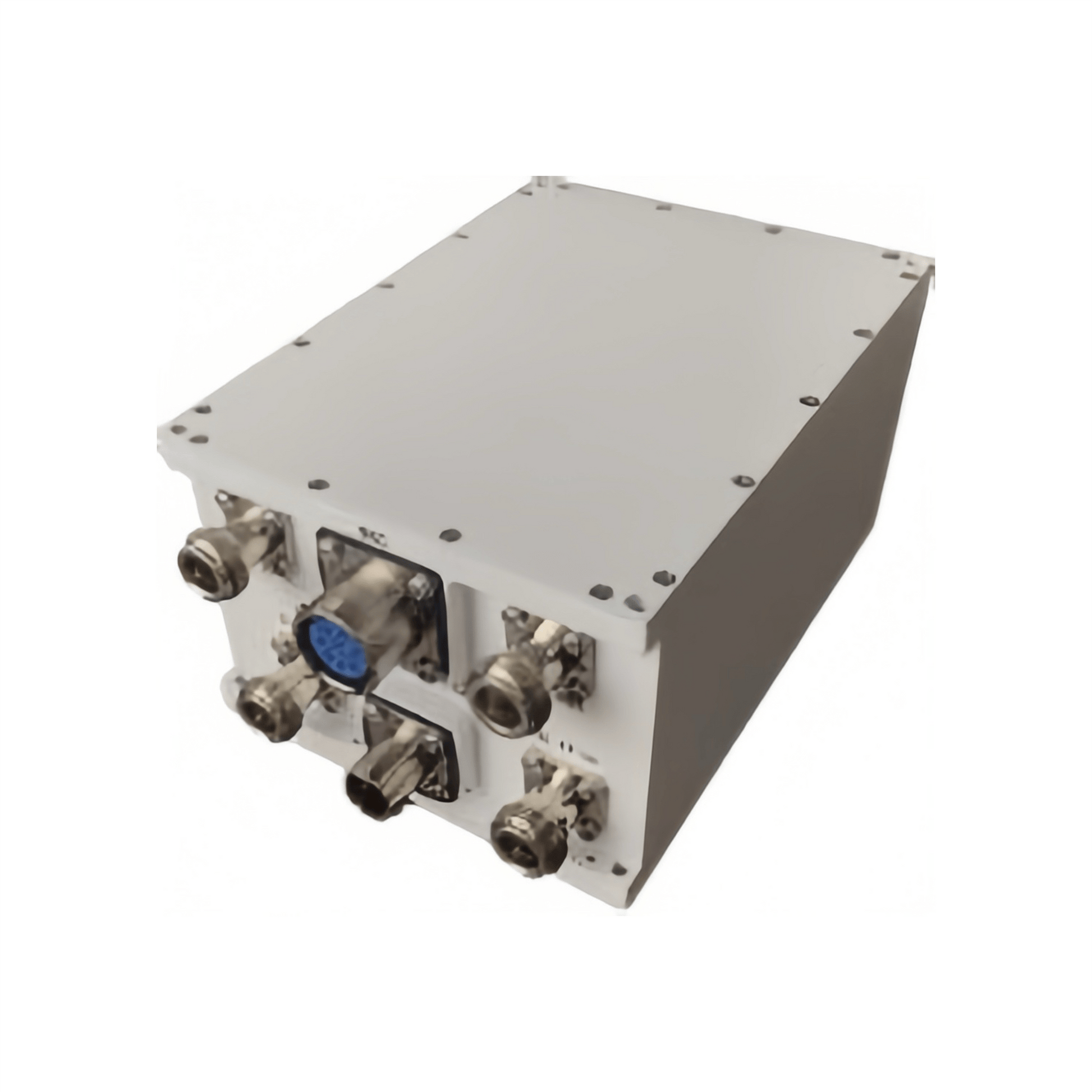

SHC-70L-OUDC Series Outdoor 70 MHz+L-Band Up/Down Converter

The SatHarbor SHC-70L-OUDC Series is a robust outdoor up/down converter that bridges 70 MHz (IF) and L-Band (950–2150 MHz) signals. It supports both 70 MHz → L-Band up-conversion and L-Band → 70 MHz down-conversion within a single unit. Featuring a built-in or external 10 MHz reference (selectable), adjustable gain, and low phase noise, it ensures reliable performance even in challenging field conditions. Designed to pair with BUCs, LNBs, or satellite modems, this IP-rated enclosure (IP66/67) is ideal for fixed, transportable, and mobile satellite communication systems that demand compact yet high-quality frequency translation.

Up Conversion (70 MHz → L-Band)

• Input Frequency: 70 MHz ± 18 MHz (others optional)
• Output Frequency: 950–1750 MHz
• Gain: ~30 dB (adjustable, 0.5 dB step)
• Phase Noise: Low phase noise design, e.g., –70 dBc/Hz @ 1 kHz (typical)

Down Conversion (L-Band → 70 MHz)

• Input Frequency: 950–2150 MHz
• Output Frequency: 70 MHz ± 18 MHz
• Gain: ~30 dB (adjustable, 0.5 dB step)
• Spurious Suppression: –40 dBc (typical)

Reference Options

• 10 MHz Reference: Internal/External selectable

General

• Operating Power: 36–72 V DC or 110/220 VAC (model dependent)
• Enclosure: Outdoor-rated (IP66/67)
• Operating Temperature: –40 °C to +55 °C (typical)
• Control Interface: RS-485/RS-232 (optional)
• Dimensions & Weight: Compact form factor for outdoor installation

Made by SatHarbor
