NJR4652JS2 NJR4652F2S2 60GHz Distance Measurement Entrance Counter Sensor Module

NJR4652JS2 / NJR4652F2S2 60GHz Distance Measurement & Entrance Counter Sensor Module

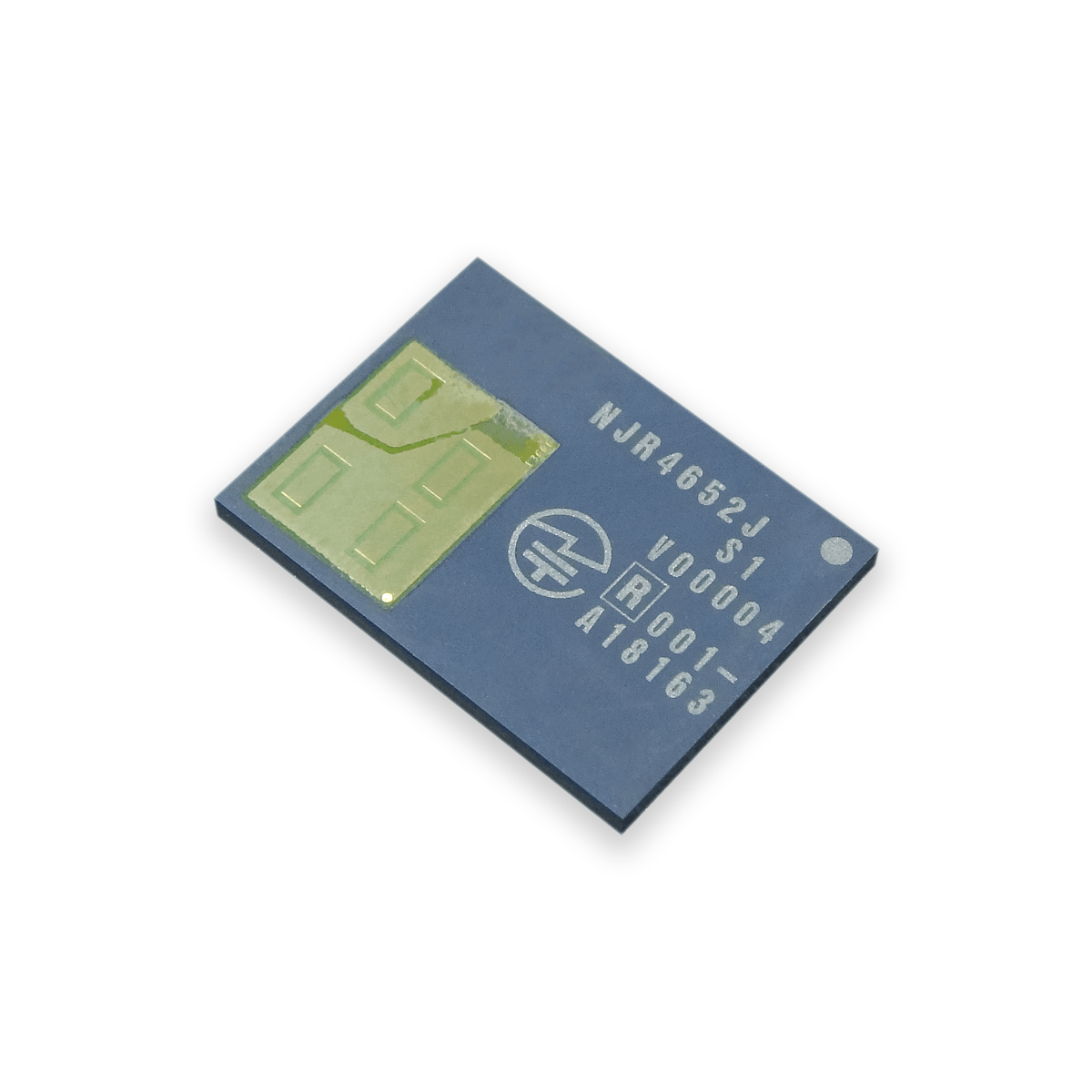

The NJR4652JS2 / NJR4652F2S2 is a compact 60GHz radar sensor module designed for entrance counting and people flow monitoring. It integrates an Infineon 60GHz radar sensor IC and MCU for control and signal processing in an ultra-compact IC-like package measuring 10 × 13.4 × 1.2 mm.

With dedicated Entrance Counter application software, the module provides high-resolution distance and position (angle) information to support reliable people counting at entrances and access points.

Features

• 60GHz radar-based sensor for distance and angle measurement
• Dedicated Entrance Counter application software
• High-resolution distance and position information for people flow monitoring
• Ultra-compact IC-like package compatible with SMT
• Integrated antenna, radar circuitry, MCU and signal processing
• Supports UART, USB and GPIO interfaces

Made by Nisshinbo Micro Devices Inc.
