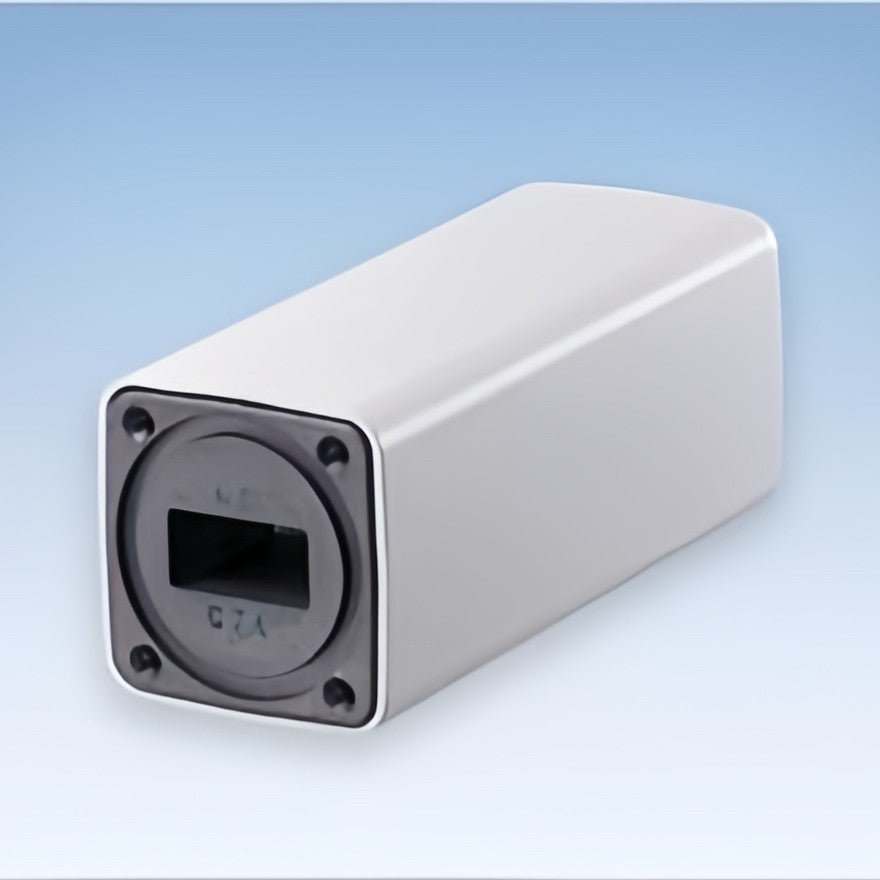

Ku-Band Dual-LO LNB SatLNB-DKu Series

The SatHarbor SatLNB-DKu Series is a dual-local-oscillator Ku-Band Low Noise Block (LNB) designed for receiving satellite signals in two different Ku sub-bands: 10.70–11.70 GHz (Low) and 11.70–12.75 GHz (High). With a typical noise figure of 0.8 dB, gain ≥ 55 dB, and a 1 dB compression output power of at least 0 dBm, it delivers stable, high-quality signal downconversion. Featuring low power consumption (about 250 mA at 9–24 V DC), compact dimensions, optional 10 MHz external reference input, and compliance with RoHS standards, this LNB suits various fixed and mobile Ku-band satellite communication applications.

Input Frequency: 10.70 GHz–11.70 GHz (L), 11.70 GHz–12.75 GHz (H)
Output Frequency: 0.95 GHz–1.95 GHz (L), 1.10 GHz–2.15 GHz (H)
Local Oscillator Frequency: 9.75 GHz (L), 10.60 GHz (H)
1 dB Compression Output Power: ≥ 0 dBm min.
Gain: ≥ 55 dB
Noise Figure: ≤ 0.8 dB (typical)
Gain Flatness: ±1.5 dB / 36 MHz, ±4 dB / 1 GHz
Spurious: ≤ –55 dBc (within 500 MHz, 0 dBm output)
Phase Noise: –63 dBc/Hz @ 1 kHz, –73 dBc/Hz @ 10 kHz, –93 dBc/Hz @ 100 kHz
LO Stability: ±3 ppm (typical)
Reference Input (Optional): 10 MHz, ~0 dBm
Additional Spurious (typical reference): –135 dBc/Hz @ 10 kHz, –145 dBc/Hz @ 1 kHz, –150 dBc/Hz @ 210 kHz, –160 dBc/Hz @ 100 kHz
Power Input: +9 ~ +24 V DC (~18 V DC typical), ~1.5 W
Connector: F-type (water-resistant) for IF output (and 10 MHz reference if applicable)
Operating Temperature: –40 °C to +55 °C (storage –45 °C to +60 °C)
Dimensions: ~90 mm × 40 mm × 40 mm (excluding feed)
Weight: ~180 g

Made by SatHarbor
