s an industry product expert, I am pleased to provide a comprehensive analysis of the NJRC Ku-Band BUC (Block Upconverter) product series. These high-performance upconverters are essential components in satellite communications, offering reliable signal amplification for uplink applications in VSAT systems and other satellite networks. In this article, I will discuss the various product series within the NJRC Ku-Band BUC lineup, their core performance attributes, and practical tips for installation and integration in demanding communication environments.

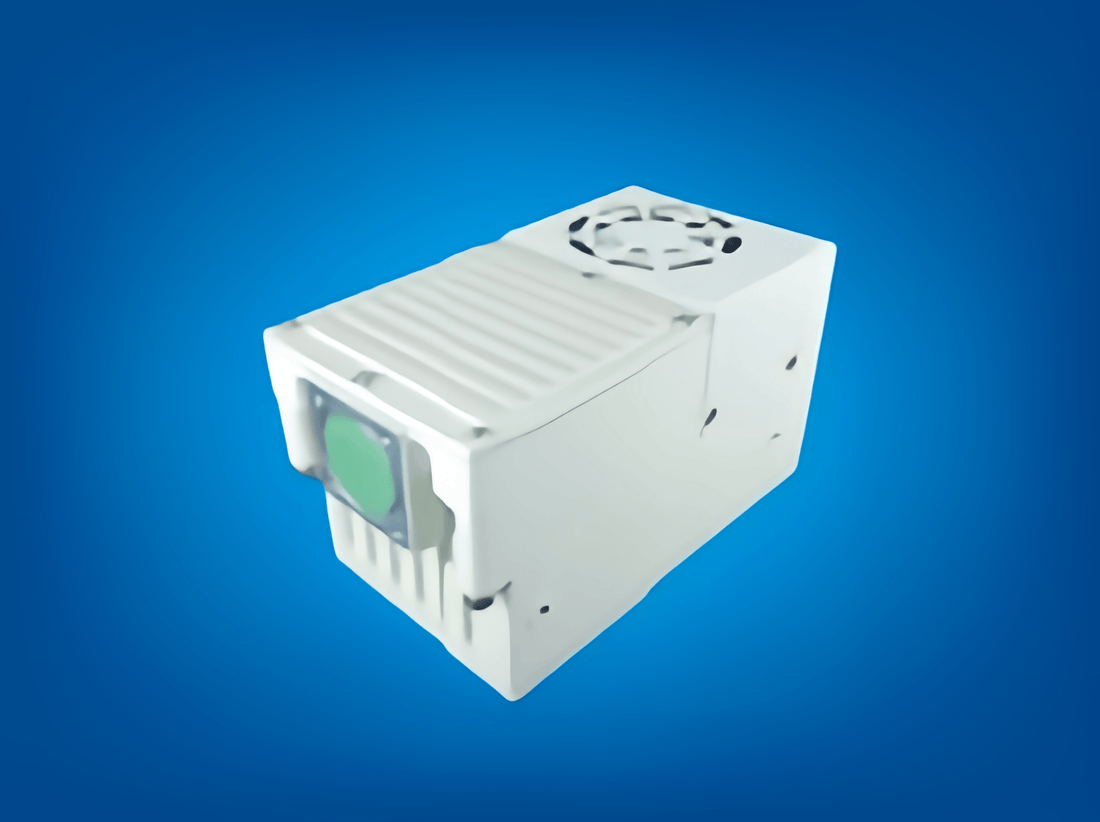

1. Overview of the NJRC Ku-Band BUC Series

The NJRC Ku-Band BUC series is available in multiple power levels to meet diverse system requirements:

• 1.5W Series:
  Designed for small-scale systems, these upconverters deliver approximately +31 dBm output power at the 1 dB gain compression point. They are ideal for standard or universal Ku-band configurations (13.75 to 14.50 GHz), providing a compact and cost-effective solution for entry-level applications.

• 2W Series:
  Tailored for lower Ku-band applications (12.75 to 13.25 GHz), the 2W models offer around +33 dBm output power. They strike a balance between performance and power efficiency, making them suitable for medium-sized systems.

• 3W Series:
  With output power in the range of +34 to +34.5 dBm, the 3W series is optimized for applications that demand higher signal integrity and lower phase noise, ensuring excellent performance in moderately sized systems.

• 4W, 6W, 8W, and 16W Series:
  For larger commercial systems or scenarios requiring robust uplink capability, higher-power models are available. The 6W and 8W models incorporate advanced features such as low distortion and GaN technology to maintain signal quality under high-power conditions. The 16W series is designed for mission-critical applications, delivering output power exceeding +42 dBm and providing substantial power headroom and stability.

Each power level is offered in various frequency configurations (Standard, Universal, and Lower Ku-band) to provide maximum flexibility during system integration.

2. Core Performance Attributes

• High Conversion Gain & Low Phase Noise:
  All NJRC Ku-Band BUC products are engineered to deliver high conversion gain with minimal phase noise at the 1 dB gain compression point, ensuring a clean and stable signal which is crucial for maintaining overall system performance.

• Versatile Interface Options:
  These upconverters feature industry-standard IF connectors and offer both N-type (50 Ω) and F-type (75 Ω) connectors. In addition, built-in RS-232C and FSK communication interfaces facilitate remote monitoring and control, enabling operators to continuously monitor parameters such as output power, temperature, and PLL lock status.

• Rugged Construction & Environmental Protection:
  NJRC products are designed to operate in harsh environments and meet the IP67 waterproof/dustproof standard. Their robust construction makes them suitable for use in maritime, desert, or other extreme conditions while ensuring long-term reliability.

• Compact & Efficient Thermal Management:
  The series is noted for its compact design, ideal for integration into space-constrained systems. Many models incorporate efficient cooling solutions, including forced-air cooling, to maintain performance even under high power conditions.

3. Usage Tips & Application Scenarios

• Selecting the Right Model:
  For small-scale VSAT or remote terminal applications, the 1.5W or 2W models provide a cost-effective and energy-efficient solution. Medium-scale systems that require enhanced signal quality may benefit from the 3W series, while high-demand commercial or military installations should consider the 6W, 8W, or 16W models for their superior output and robustness.

• Remote Monitoring & Management:
  Leverage the integrated RS-232C and FSK interfaces to implement remote control and monitoring solutions. This allows operators to adjust settings such as attenuator steps and monitor real-time performance metrics, ensuring optimal system performance and rapid troubleshooting.

• Installation Best Practices:
  Ensure proper alignment of the DC power supply and correct connector torque as specified in the product documentation to avoid damage. Regularly inspect and maintain connections and cooling components to safeguard against performance degradation over time.

• System Integration Optimization:
  When integrating NJRC BUC products into larger satellite communication systems, carefully match impedance across all components to ensure minimal signal reflection and loss. Use quality cable assemblies and maintain a clean installation environment to maximize the overall efficiency of the RF chain.

Conclusion:

The NJRC Ku-Band BUC series stands out as a versatile and robust solution for a wide array of satellite communication applications. With options ranging from 1.5W to 16W, these upconverters offer exceptional conversion gain, low phase noise, and extensive environmental protection, making them ideal for both commercial and critical applications. By carefully selecting the appropriate model and implementing best practices in installation and remote management, operators can significantly enhance the performance and reliability of their satellite uplink systems.
