Introduction

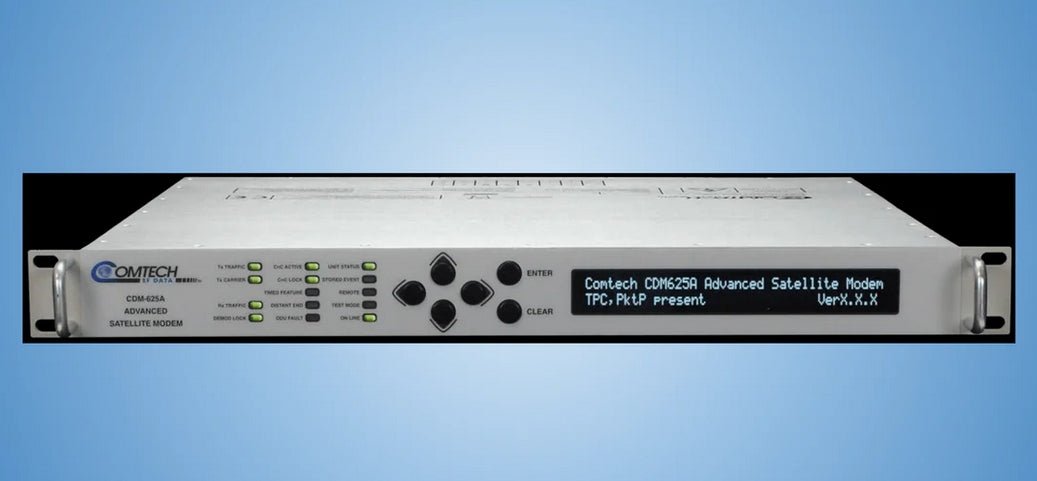

In the world of satellite communications, cutting-edge technology can make all the difference for mission-critical operations. That’s why SatHarbor proudly offers the Comtech CDM-625A satellite modem—a solution known for its high data rate capabilities (up to 25 Mbps), ACM (Adaptive Coding & Modulation) support, and DoubleTalk® Carrier-in-Carrier® bandwidth compression. Designed to optimize throughput, reduce operating expenses, and maintain robust links even in adverse conditions, the CDM-625A is an ideal fit for emergency satellite connectivity, offshore satellite communication for oil and gas, and disaster recovery satellite solutions across Ku-band networks in Central Asia or any other remote region worldwide.

Key Features & Technical Highlights

1. Broad Data Rate & Symbol Rate Range

   • Supports data speeds from 18 kbps to 25 Mbps and symbol rates from 18 ksps to 12.5 Msps.
   • Flexible enough for low-rate SCADA traffic or high-throughput enterprise data and media streaming.

2. Advanced FEC & Modulation

   • Includes VersaFEC-2 high-performance LDPC, traditional LDPC, and Turbo Product Codes (TPC), ensuring superior coding gain.
   • Offers multiple modulation schemes (BPSK, QPSK/OQPSK, 8PSK/8-QAM, 16-QAM/16-ARY, 32-ARY) to strike the optimal balance between bandwidth efficiency and link reliability.

3. DoubleTalk® Carrier-in-Carrier® with CnC-APC

   • Merges transmit and receive carriers on the same transponder space, drastically cutting bandwidth costs.
   • Carrier-in-Carrier Automatic Power Control (CnC-APC) mechanism adjusts power during rain fade while conserving total composite power—a critical advantage in unpredictable climates.

4. Flexible Frequency Bands & Interfaces

   • Operates at 70/140 MHz or extended L-Band (950–2250 MHz) in the same unit, easing inventory management.
   • Interfaces include EIA-422/530, V.35, G.703 T1/E1/T2/E2, LVDS, HSSI, ASI, and a 4-port 10/100Base-T Ethernet switch for diverse networking needs.

5. High-Performance Packet Processor

   • Enables advanced IP/Ethernet features like header and payload compression, Streamline Encapsulation (SLE), and multi-level QoS.
   • Reduces overhead for real-time traffic such as VoIP, streaming video, and mission-critical applications—particularly beneficial for SCPC/TDMA modem use cases where bandwidth costs are paramount.

6. ACM for Dynamic Bandwidth Optimization

   • Adaptive Coding & Modulation adjusts FEC rates and modulation schemes on the fly to handle changing link conditions (e.g., rain fade).
   • QoS integration prioritizes essential data, ensuring continuity for high-value services.

Typical Applications

1. Mobile Backhaul & Telecom

   • The CDM-625A’s data rates and reliability are ideal for mobile network operators extending coverage to remote regions with limited terrestrial infrastructure.

2. Offshore & Maritime

   • Real-time data, voice, and video transmissions from oil rigs, vessels, and exploratory platforms benefit from robust connectivity and advanced FEC options.

3. Government & Military

   • High throughput plus powerful encryption compatibility ensure secure communications for critical operations. Carrier-in-Carrier also reduces footprint and costs.

4. Disaster Recovery & Emergency Response

   • Quick deployment, adaptive bandwidth, and reliable traffic prioritization make the CDM-625A a go-to solution in urgent scenarios where connectivity must be restored rapidly.

Best Practices & Considerations

• Leverage CnC-APC: Ensure you enable Carrier-in-Carrier® Automatic Power Control for maximum link resilience in rainy or harsh climates.
• Select Optimal Rolloff & FEC: Tune your filter rolloff (5%, 10%, 15%, 20%, 25%, or 35%) and FEC mode to suit your bandwidth constraints and link margin requirements.
• Use QoS & Compression: Activate the Packet Processor’s QoS for real-time traffic and compression features to shrink bandwidth usage and slash costs.
• Plan for Redundancy: When downtime is not an option, consider 1:1 or 1:10 modem redundancy switches for fail-safe operations.
• Regular Monitoring & Updates: Firmware updates and remote M&C (via SNMP, Telnet, or Web) help maintain high performance.

Why Choose SatHarbor

• One-Stop Integration: From hardware supply to system design and after-sales service, we tailor solutions for tough, bandwidth-limited environments.
• Authorized Comtech Distributor: We deliver genuine CDM-625A modems with extended warranty and expert support.
• Global Experience: Our track record spans Central Asia, the Middle East, and other regions lacking reliable terrestrial infrastructure.
• 24/7 Technical Support: SatHarbor’s team stands ready to handle troubleshooting, repairs, and performance optimization around the clock.

Conclusion & Call to Action

The Comtech CDM-625A satellite modem is engineered to maximize spectral efficiency, reduce operational costs, and ensure robust connections. With advanced Forward Error Correction, DoubleTalk® Carrier-in-Carrier®, and versatile networking features, it’s the go-to solution for organizations needing powerful, adaptive satellite links in challenging conditions.

Ready to elevate your satellite communications network? Contact SatHarbor today for a customized solution.
