Introduction

As a leading provider of satellite communication solutions, SatHarbor is proud to offer the Comtech CDM-570A series satellite modem. Known for its robust performance, advanced Forward Error Correction (FEC) options, and support for Comtech’s patented DoubleTalk® Carrier-in-Carrier® technology, the CDM-570A helps organizations achieve efficient and cost-effective connectivity. Whether deployed for emergency satellite connectivity, disaster recovery satellite solutions, or offshore satellite communication for oil and gas applications, this modem excels in diverse environments—including the Ku-band networks in Central Asia—thanks to its flexible design and intelligent bandwidth management.

Key Features & Technical Highlights

1. VersaFEC-2 and Multiple FEC Options

   • Supports VersaFEC-2 high-performance LDPC, VersaFEC low-latency LDPC, Turbo Product Codes (TPC), and more.
   • This versatile approach ensures optimal data transmission rates with minimal latency, making it ideal for real-time operations.

2. Carrier-in-Carrier® Bandwidth Compression

   • By allowing transmit and receive carriers to share the same transponder space, DoubleTalk® Carrier-in-Carrier® slashes bandwidth needs and lowers operating costs.
   • Carrier-in-Carrier Automatic Power Control (CnC-APC) enables the modem to adjust for rain fade and maintain total composite power, boosting network availability.

3. Wide Data Rate Range

   • Handles data rates from 2.4 kbps to 10.239 Mbps, accommodating everything from low-data SCADA requirements to high-throughput corporate data exchanges.
   • Multiple modulation schemes (BPSK, QPSK, 8PSK/8-QAM, 16-QAM, 32-ARY) let users balance performance with spectral efficiency.

4. Flexible Frequency Bands

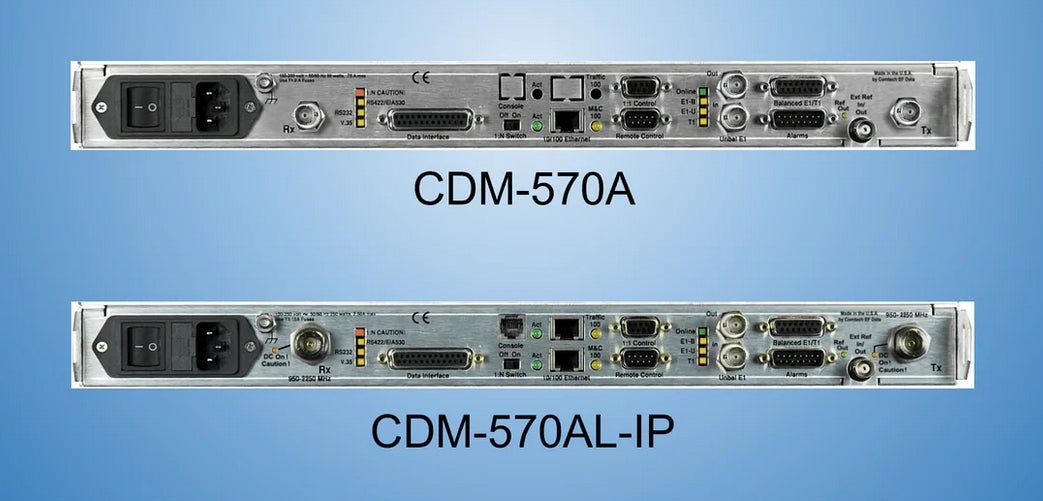

   • The CDM-570A model supports 70/140 MHz IF (50–90 MHz or 100–180 MHz).
   • The CDM-570AL or CDM-570A-L-IP covers the L-Band range (950–2250 MHz).
   • This adaptability suits both traditional satellite bands (C, Ku, and X) and higher-frequency Ka-band configurations.

5. Advanced Network Management

   • Seamless integration with Vipersat Management System (VMS) enables dynamic SCPC allocation and on-demand bandwidth—key for mobile backhaul and large enterprise networks.
   • Automatic Uplink Power Control (AUPC) adjusts transmit power to maintain link quality, especially crucial for harsh environments or varying weather conditions.

6. IP/Ethernet Traffic and QoS

   • The -IP models include a high-performance packet processor supporting header/payload compression, advanced Quality of Service (QoS), and VLAN configurations.
   • These features reduce overhead, optimize throughput, and prioritize mission-critical data—especially important in congested or latency-sensitive networks.

Typical Application Scenarios

1. Emergency & Disaster Recovery

   • The modem’s robust design and optional ruggedization ensure reliable operations for emergency satellite connectivity during natural disasters or critical outage events.

2. Offshore Oil & Gas

   • High-performance networking is indispensable for real-time data gathering on drilling platforms. The CDM-570A’s SCPC/TDMA modem approach and Carrier-in-Carrier® efficiency lower bandwidth costs.

3. Government & Military

   • Secure, low-latency connectivity is essential for government agencies. The modem’s advanced FEC, remote M&C (monitor & control), and encryption-friendly design support mission-critical environments.

4. Telecom & ISP Services

   • For providers extending coverage to remote regions—such as villages in Central Asia—the flexible data rates and high spectral efficiency facilitate broadband internet, VoIP, and backhaul for mobile networks.

Best Practices & Considerations

• Choose the Right ModCod: Align the modem’s modulation and coding (BPSK to 32-ARY) with your link budget to maximize throughput without sacrificing link reliability.
• Enable CnC-APC: For two-way links in rain-prone areas, enabling Carrier-in-Carrier® Automatic Power Control maintains service quality during downpours.
• Utilize QoS & Compression: In IP/Ethernet-driven networks, activating QoS and header/payload compression can substantially reduce overhead and cost.
• Regular Maintenance & Monitoring: Schedule routine checks, firmware updates, and leverage remote M&C to detect performance degradation early.
• Consult with Experts: Always involve experienced satellite communication engineers (like the team at SatHarbor) to optimize your SCPC or TDMA network configurations.

Why Partner with SatHarbor

• Certified Comtech Distributor: We bring you genuine CDM-570A series modems along with extended support and warranty options.
• One-Stop Integration: From hardware provisioning to custom network design, our turnkey solutions address unique operational challenges in environments lacking terrestrial coverage.
• Comprehensive After-Sales Support: Our 24/7 technical assistance covers everything from troubleshooting to field repairs.
• Local and Global Projects: With a strong track record in Central Asia, the Middle East, and beyond, we ensure smooth satellite communication deployments wherever you operate.

Conclusion & Call to Action

The Comtech CDM-570A satellite modem series brings together advanced FEC techniques, bandwidth compression features, and flexible network capabilities—empowering organizations to scale their satellite links while saving on OPEX and CAPEX. For enterprises looking to enhance connectivity in remote or challenging terrains, SatHarbor offers end-to-end expertise.

Ready to experience high-efficiency satellite communication? Contact SatHarbor today for a customized solution.
