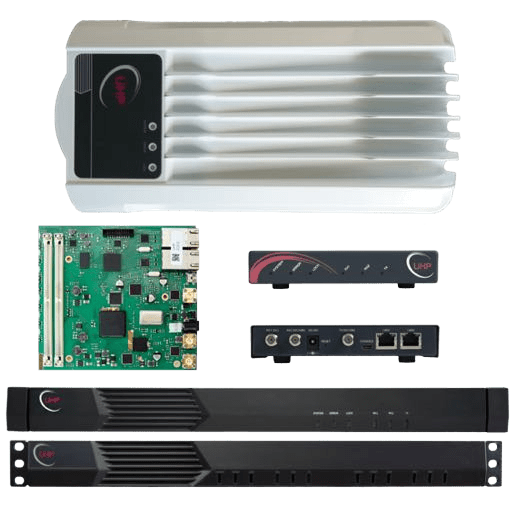

Satellite service providers today must handle increasingly complex and data-intensive applications, from remote site connectivity to national-scale network infrastructures. SatHarbor is proud to present the CEL-100 Series | Broadband Satellite Router, leveraging advanced modulation, dynamic resource allocation, and next-generation IP routing. Engineered with a focus on high throughput, low power consumption, and multi-beam HTS compatibility, CEL-100 enables reliable, cost-effective coverage for everything from enterprise WAN extensions to high-demand media streaming.

Key Features & Technical Highlights

1. Dual DVB-S2/S2X Demodulators

   • Two independent IF inputs (Rx1 and Rx2) handle symbol rates up to 500 Msps, enabling simultaneous reception of high-capacity carriers—even across multiple satellite beams.
   • Supports advanced constellations (QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK) and down to 5% roll-off, maximizing transponder use on modern HTS satellites.

2. MF-TDMA Modulator with Adaptive Coding & Modulation

   • The router’s return channel offers data rates up to 35 Mbps via LDPC-based MF-TDMA.
   • Achieves up to 96% efficiency compared to SCPC when using advanced protocols and minimal overhead, critical for cost savings in star or point-to-point networks.

3. High Packet Processing & Throughput

   • Handles up to 150,000 IP packets per second, supporting demanding voice, video, and data services.
   • Delivers up to 220 Mbps total throughput, giving operators the capacity to run bandwidth-heavy applications from a single, compact device.

4. Ultra-Low Latency TDM/TDMA

   • Delivers round-trip delay around 570 ms in TDMA mode—particularly important for interactive applications such as VoIP, video conferencing, and remote SCADA control.

5. Advanced IP Routing & Security

   • Includes IPv4/IPv6 support, VLAN, DSCP, advanced QoS shaping, AES-256 encryption, and robust IP features like TCP acceleration.
   • Layer 3 routing or Layer 2 bridging modes allow flexible deployment in diverse network architectures.

6. Designed for HTS & Beam Switching

   • Preloaded coverage maps, OpenAMIP support, and built-in beam switching logic let remote terminals seamlessly roam across multiple satellite footprints, ensuring nonstop connectivity on the move.

7. Compact Form Factor & Low Power

   • Consumes less than 8W, aiding deployments with limited power budgets while boasting an MTBF exceeding 200,000 hours.
   • Weighs a mere 0.5 kg in its compact chassis, yet handles intense broadband demands in enterprise or government networks.

Typical Application Scenarios

1. Large-Scale VSAT Networks

   • Thanks to multi-beam HTS support, star or mesh topologies, and high-speed processing, CEL-100 excels in robust broadband services for ISPs, satellite service providers, and massive enterprise rollouts.

2. Government & Emergency Response

   • Low latency, high throughput, and advanced QoS ensure mission-critical tasks—like video surveillance, border security, or disaster recovery—maintain uninterrupted connectivity.

3. Offshore & Remote Operations

   • Compact size and minimal power requirements suit maritime vessels, offshore rigs, or remote mining sites where stable broadband is essential but infrastructure is scarce.

4. Corporate WAN Extensions

   • By blending TDM/TDMA inbound with DVB-S2X outbound, operators can securely expand corporate networks beyond terrestrial limitations with consistent performance and cost efficiency.

Best Practices & Considerations

• Leverage DVB-S2X Efficiency: Choose advanced modulation (32APSK+ or 5% roll-off) to drastically reduce OPEX by fully utilizing transponder resources.
• Enable Adaptive Features: Turn on ACM in both forward and return channels for optimized throughput even under fluctuating weather or interference conditions.
• Explore Beam Switching: For mobility applications or multi-beam HTS satellites, configure coverage maps and OpenAMIP integration to maintain high data rates across coverage footprints.
• Use QoS & Traffic Shaping: Guarantee real-time traffic (VoIP, video) receives priority, while lower priority tasks use leftover capacity.

Why Choose SatHarbor

• Full-Service Integration: From engineering design to installation and ongoing support, we tailor every CEL-100 deployment to specific operational needs.
• Global Experience: Proven track record with major operators worldwide, from Central Asia’s Ku-band networks to maritime lines in the Atlantic.
• Round-the-Clock Support: Our dedicated 24/7 assistance covers hardware, software, and network optimization.
• Future-Ready: As HTS coverage expands, CEL-100’s advanced waveforms and beam switching ensure your satellite links keep pace with tomorrow’s demands.

Conclusion & Call to Action

The CEL-100 Series | Broadband Satellite Router is an ultra-compact, power-efficient platform designed for large-scale HTS networks, government infrastructures, and next-level VSAT connectivity. With dual DVB-S2X demodulators, a potent MF-TDMA return, and advanced IP features, it helps you streamline bandwidth usage while maintaining exceptional link performance.

Ready to upgrade your satellite architecture? Contact SatHarbor for a personalized solution.
